GrOpt

GrOpt is a toolbox for MRI Gradient Optimization (GrOpT). Rather than analytical combinations of trapezoids, the software uses optimization methods to generate arbitrary waveforms that are (hopefully) the most time optimal solution.

The main workhorse of the package are the optimization routines written in C++, which for final applications are designed to be compiled into a pulse sequence as needed.

Installation

pip install --pre gropt

Note

GrOpt 2.0 is currently in pre-release. The --pre flag is required for now — an official release is coming shortly.

Quick Start

import gropt

In this example we generate a flow compensated phase encode, with a known duration (1.12 ms).

gparams = gropt.GroptParams()

# Set up problem
gparams.dt = 10e-6
gparams.N = 112
gparams.vec_init_simple()

# Add constraints
gparams.add_gmax(.08)
gparams.add_smax(200)
gparams.add_moment(0,14.0)
gparams.add_moment(1,0.0)

# Solve
result = gropt.solve(gparams)
out = result.X

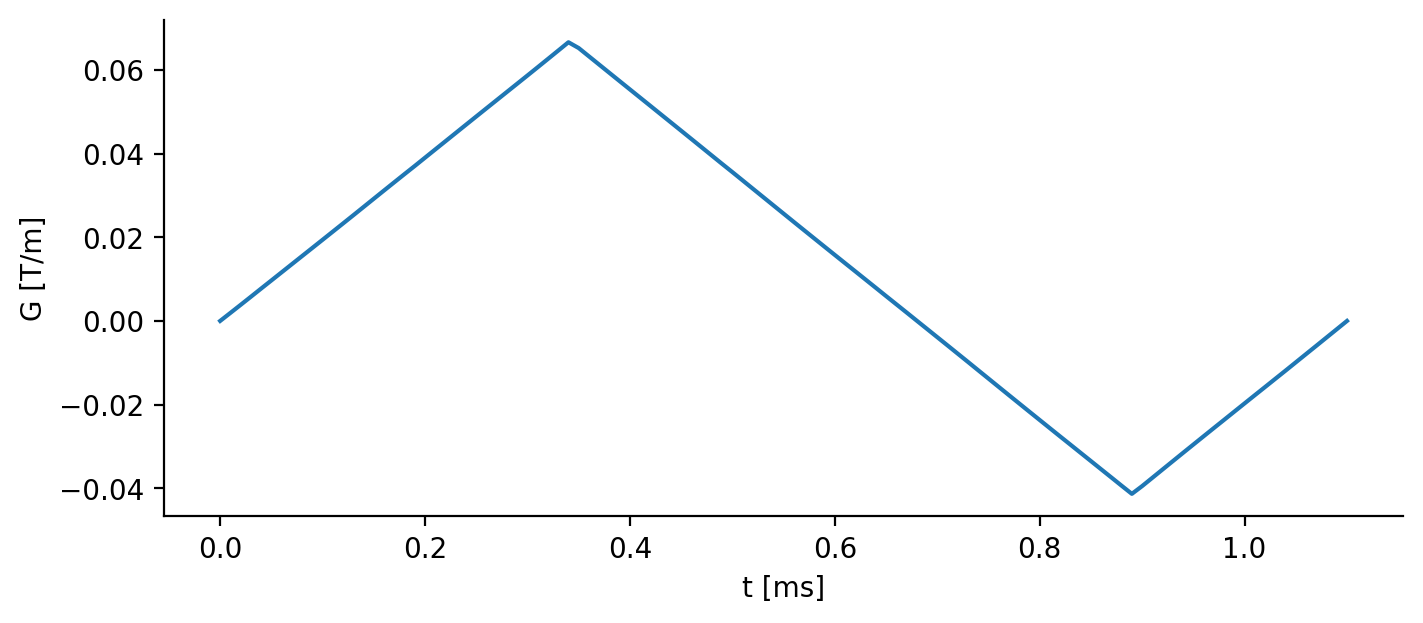

Which produces the waveform:

Output of intro code example
